AS3310 based ADSR envelope generator.

• Functions as ADSR when gate input is used or as AD when trigger input is used

• Trigger input can be used as re-trigger when gate input is used

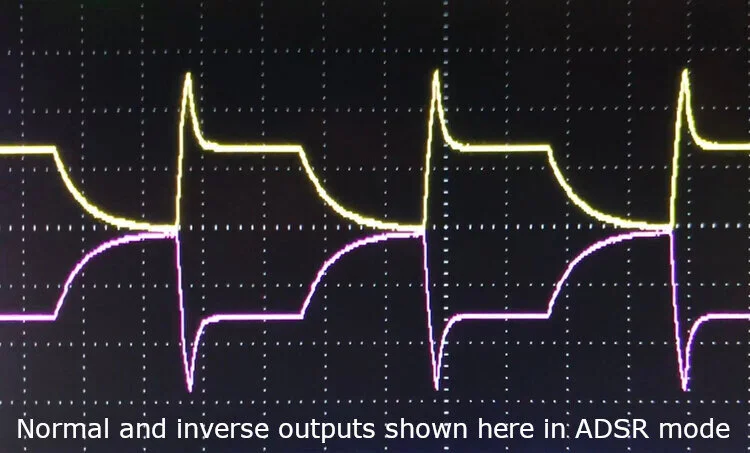

• Features inverted output as well as normal output

• Decay CV

• Wide range for AD&R times

TECHNICAL SPECS:

• 6 hp (30x128mm panel size)

• Depth: 39mm

• +12V 15mA

• -12V 12mA

• 5V 0mA
